Professional LED Light Therapy Panel – Multi-Wavelength Red & NIR LEDs

The Professional LED Light Therapy Panel uses 252 high-power 3W single-chip LEDs with multiple wavelengths from 460nm to 1060nm. It combines red, near-infrared, blue, and yellow light in one panel, including 630nm, 660nm, 810nm, 830nm, and 850nm wavelengths. With high irradiance output and a 30° lens angle, the panel provides flexible options for different light therapy applications.

Designed for stable and convenient operation, the panel has an actual power of 420W and three active cooling fans to support heat dissipation during use. The recommended working distance is 3–12 inches, while the multiple mounting and hanging options make it easy to position the panel according to different applications. The AC 100–240V input also makes it suitable for use in different markets.

XMCSOL is a professional manufacturer of LED light therapy products, offering both wholesale supply and OEM/custom solutions. We work with distributors, retailers, wellness brands, and other business customers to provide flexible product options for different markets. Whether you need standard panels for wholesale or customized products for your own brand, our team can discuss your requirements and help develop a suitable solution.

Features:
Multi-Wavelength LED Technology.
252 High-Power 3W LEDs.
High Irradiance Output.
Red, NIR, Blue & Yellow Light.
3-Fan Active Cooling System.

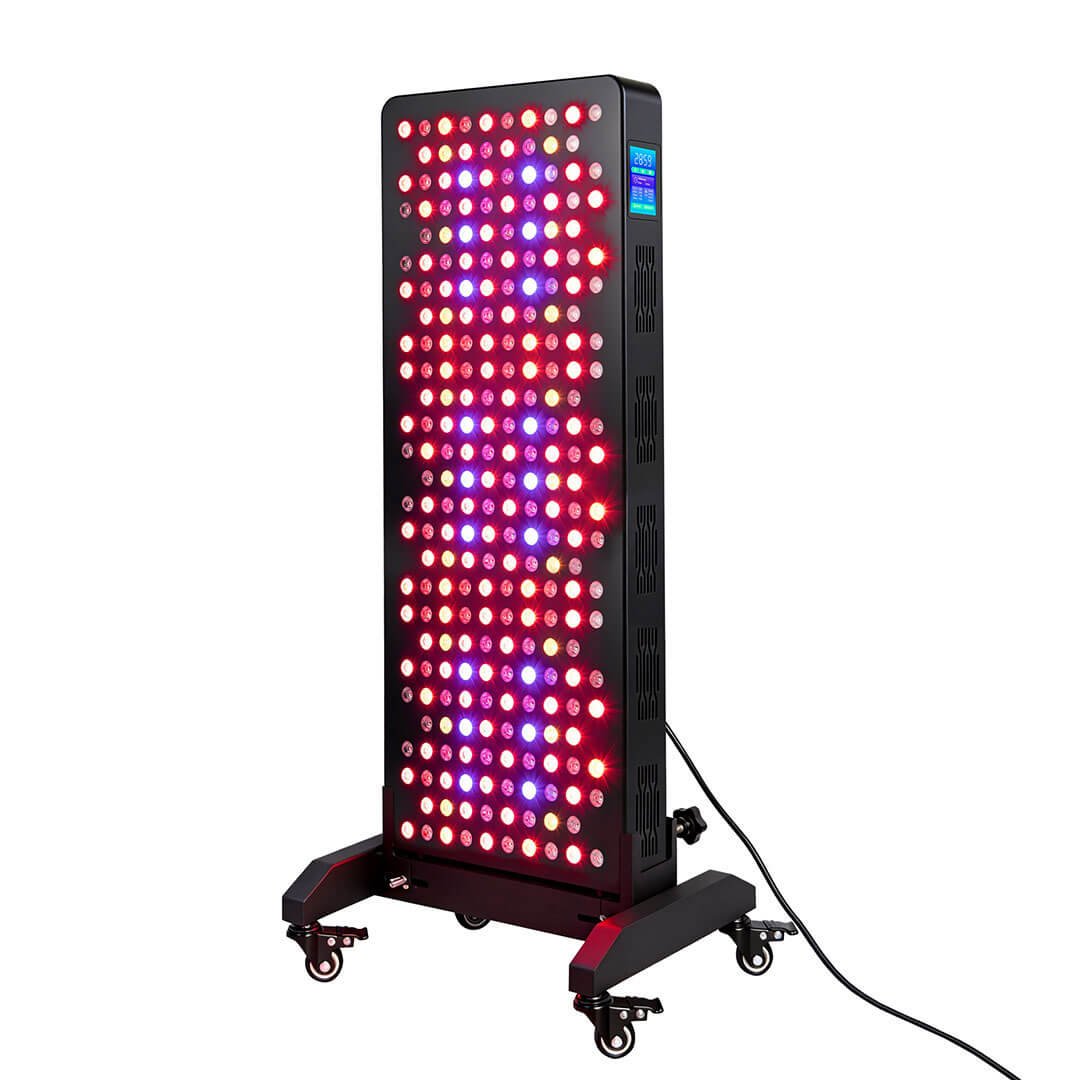

Adjustable Mounting & Hanging Options.
Long LED Lifespan.

Specifications:
1. LED Type: 3W Single-Chip LED,
2. LED Quantity: 252 pcs,
3. Wavelengths: 460nm, 580nm, 630nm, 660nm, 810nm, 830nm, 850nm, 940nm, 1060nm,
4. LED Distribution: 460nm × 18, 580nm × 18, 630nm × 27, 660nm × 81, 810nm × 6, 830nm × 6, 850nm × 84, 940nm × 6, 1060nm × 6,
5. Rated Power: 756W, Actual Power: 420W,
Red Light Power: 170W, NIR Light Power: 182W,
Blue Light Power: 48W, Yellow Light Power: 55W,
6. Lens Angle: 30°,
7. Input Voltage: AC 100–240V,
8. Working Current: 1.89A @ 220V,
9. Working Frequency: 50/60Hz,

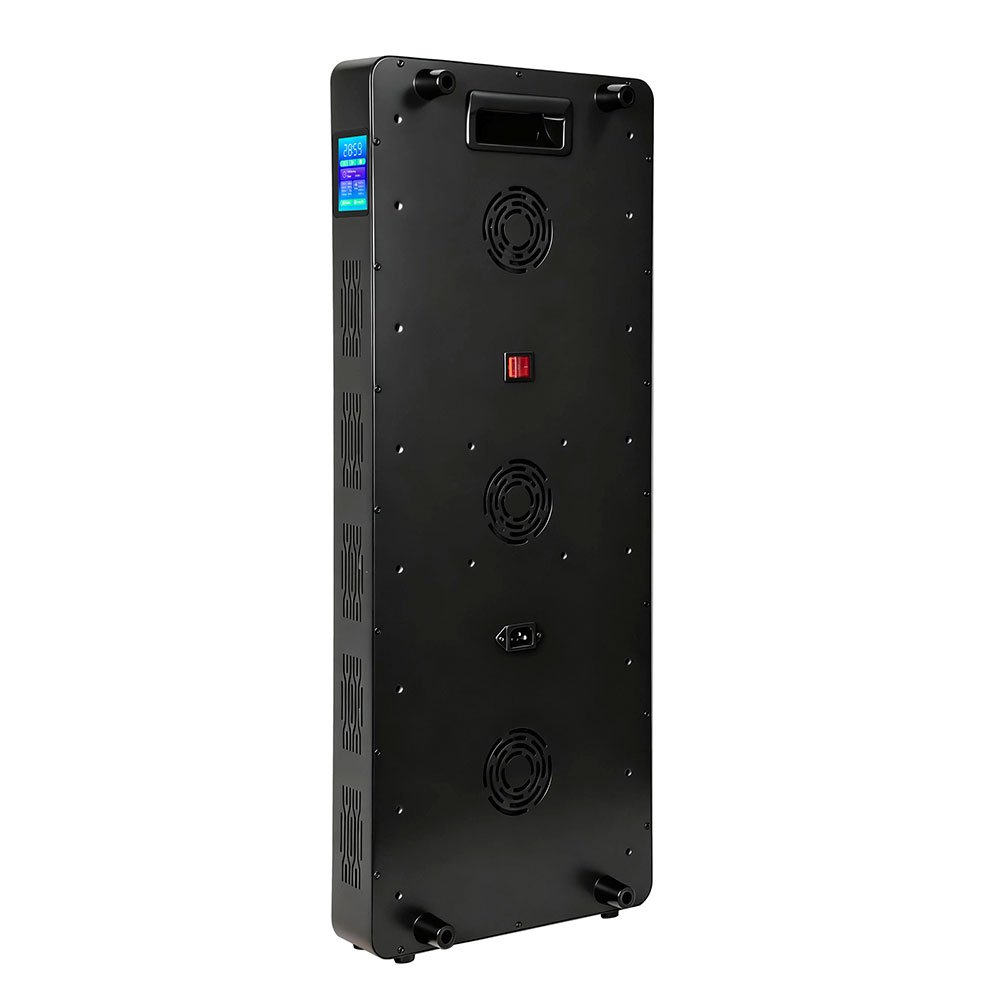

10. Cooling System: 3 × Active Cooling Fans,
11. Driver Type: 3 × Built-in Constant-Voltage Power Supplies,
12. Recommended Distance: 3–12 inches,

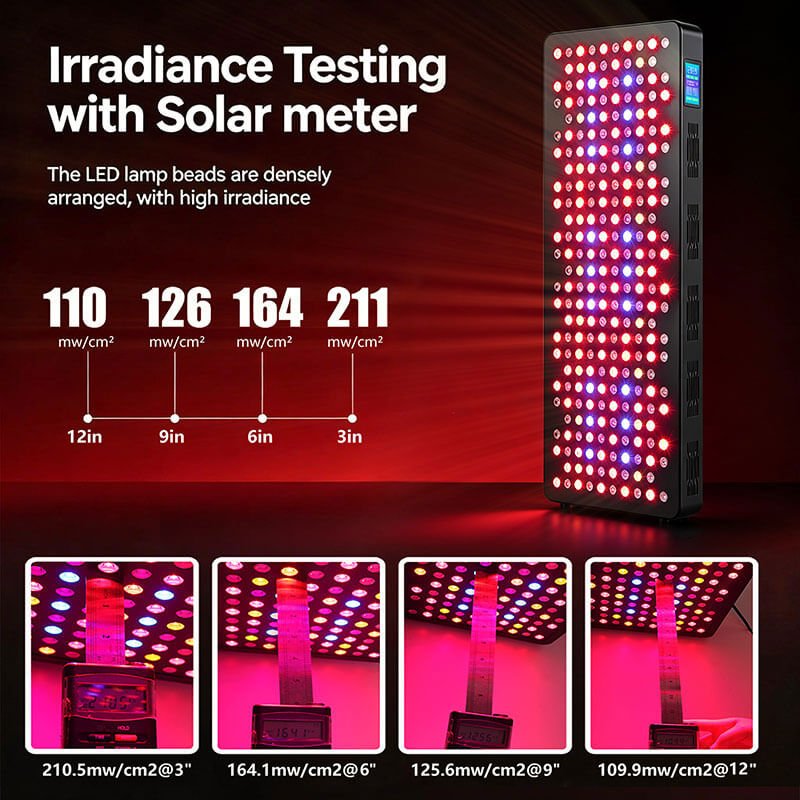

13. Red Light Irradiance: 700 / 410 / 360 / 320 W/m² @ 3 / 6 / 9 / 12 inches,
14. NIR Irradiance: 1600 / 1100 / 946 / 810 W/m² @ 3 / 6 / 9 / 12 inches,
15. Total Irradiance: 2150 / 1500 / 1300 / 1100 W/m² @ 3 / 6 / 9 / 12 inches,
16. EMF: 0.05 / 0.03 / 0.02 / 0.02 μT @ 3 / 6 / 9 / 12 inches,
17. Operating Temperature: -20–60°C,
18. LED Lifespan: ≤50,000 hours,
19. Material: Iron,
20. Product Size: 740 × 300 × 65 mm.

Go With:
1 * Professional LED Light Therapy Panel – Multi-Wavelength Red & NIR LEDs,
2 * Connecting Screws,
1 * Two-Wire Hanging Cable,
1 * Protective Goggles,
1 * 16 AWG Power Cord,
4 * Rubber Feet,
1 * M8 Socket,
5 * Phillips Screws,
1 * Phillips Screwdriver.
